In order to meet the requirements on the development of the electric power, metallurgy and coal industries, our works has designed and developed Series HS Up-to-date Generation Slurry Pump with large capacity, high head, multi-stages in series to remove ash & sludge and to deliver liquid-solids mixture, based on the experience of slurry pump .design and manufacture for many years, and abstracting the research results of advanced technology from home and abroad. The main technical features of this pump are as follows:

　　-CAD moden design, super hydraulic performance, high efficiency and lower abrasion rate;
　　-Wide passage, non-clogging and good performance of NPSH;
　　-Expeller seal combined with packing seal and mechanical seal have be adopted to guarantee the slurry from leakages;
　　-Reliability design ensures long MTBF(mean time between events);
　　-The metric bearing with oil lubrication, reasonable lubrication and cooling systems ensure the bearing to be operated under the low temperature;
　　-The materials of wet pads have the good performance of anti-wearing and anti-corrosion;
　　-The pump can be used for seawater ash-removing to prevent it from the corrosion of seawater, salt and mist, and electrochemical corrsion;
　　-The pump can be operated in series with multi-stage within permissible pressure.
　　-The permissible maximum working pressure is 3.6MPa.

　　The series of pump has the advantages of reasonable construction, high efficiency, reliable operation and easy maintenance. It can be widely used for handing the mixture contained of abrasive and corrosive solids in electric power, metallurgy, mine, coal, constructional material and chemical industry departments, especial for removing ash and sludge in electric power station.

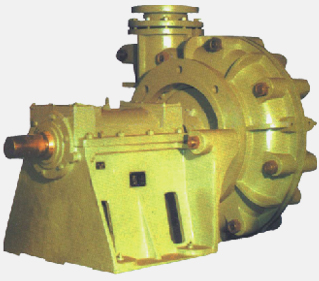

　　The series HS(P) slurry pump is of horizontal, single-stage, single-suction, cantilever, double-casing, centrifugal slurry pump. The pump rotates in clockwise viewed from the drive end.
　　The wet parts of HS and HSP pump at the same outlet diameter can be interchangeable. Their outline installation dimensions are one and the same. For the drive part of the series HS(P) slurry pump ,the horizontal split frame with oil lubrication and two sets of water cooling systems inside and outside has been adopted. If necessary, cooling water can be supplied. The prepared jolt for cooling water and the pressure of the cooling water can be seen in table 1.

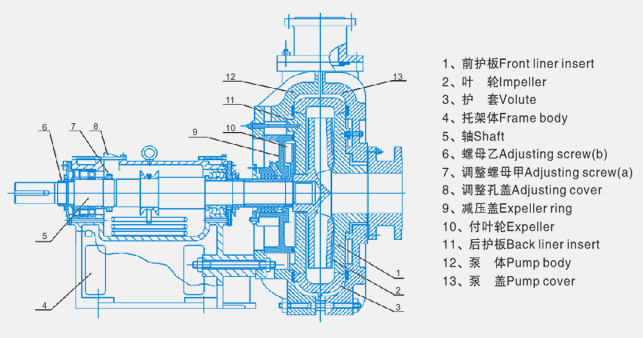

　　Two kinds of shaft seal-expeller seal combined with packing and mechanical seal have been used for series HS(P) slurry pump.

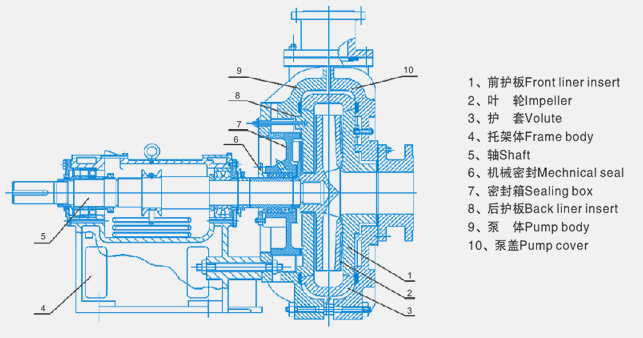

　　The mechanical seal supplied with high pressure sealing water is recommended when the slurry pump os operated in series (two stages and above two stages), and the expelled seal combined with packing is used in single-stage pump.
　　The water pressure and amount of all kinds of the shaft seal is as follows:
　　1)Sealing water pressure
　　For single-stage pump with the expelled seal combined with packing, the water pressure of the shaft seal is 0.2-0.3Mpa.
　　For the multi-stage(two and above two stages) in series operation wity the expelled seal combined with packing, the sealing water pressure should be:
　　The lowest sealing water pressure of n where: n≥2.
　　For the mechanical seal, the sealing water pressure of very stage of pump is higher 0.1MPa than the pressure at the outlet of pump.
　　2)Sealing water pressure (see table 1)
