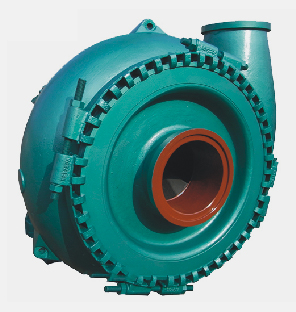

MS (MSH) type dredge pump used to connect tapes of single pump shell structure, for single stage single suction cantilever horizontal centrifugal pump. With light weight, cavitation performance is good, resistance to abrasion resistance, circulation way spacious, convenient installation etc. For large particles strong abrasion clay sand continuous conveying, applicable to dredge dredging, dredging.

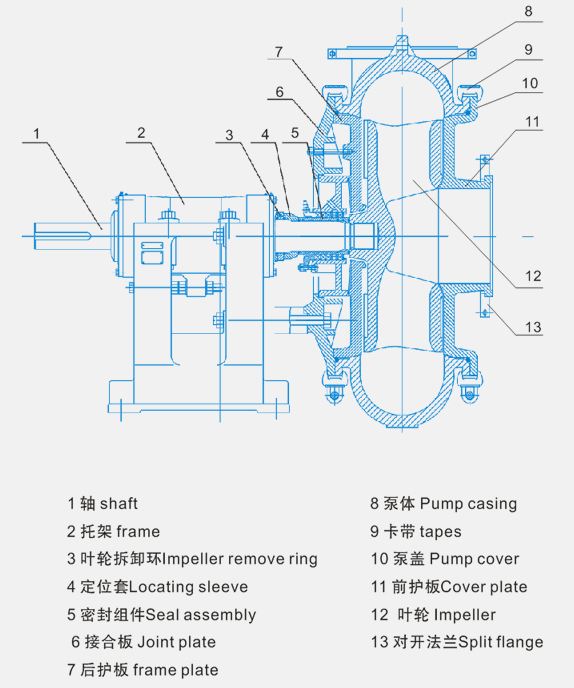

　　This pump is composed of pump head, seal assembly, bearing components, bracket, etc. Bearing lubrication way as the grease lubrication. Flow components impeller, pump body, front plate, plate after all use strong antifriction alloy cast iron or wear resistant alloy steel, hardness is not low and 58 HRC.
