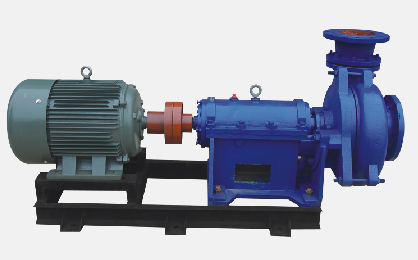

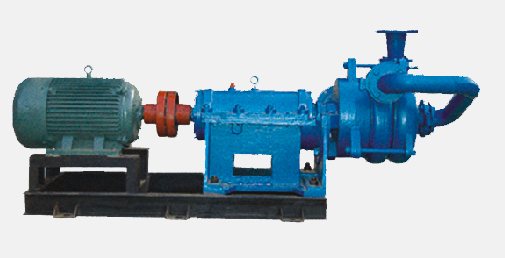

ZJY special pump is a kind of special performance of impurity pump. In recent years, the industry was called "filter press special feeding pressure pump". This pump the side suction serous, simple packing seal no leakage, more important is its flow, lift curve is very steep, very suitable for some special condition.

　1.hydraulic design, structural design advanced novel, high efficiency, resistance to abrasion, smooth and reliable operation;
　2.the material into a big flow rate, pressure is low;
　3.late press flow is small, high pressure;
　4.shaft seal is simple, reliable, no water injection, no mechanical seal, no leakage,
　5. filter feeding don't frequency control of motor speed, the transmission of high concentration.

　　The information listed in the main technical parameters for the pump in the 1480 r/min of data, to the low pressure condition, can be appropriately cutting impeller or reduce pump revolution to solve, still can choose our factory production of ZJ series slurry pump, ZJ type pump mechanical seal and ZJY pump as "no leakage". This material provide only a few direct coupling transmission based size. Because of the terrain restriction or change pump revolution need belt drive foundation size, by the specific data provide further design. Belt drive mode usually have a tail frame, parallel type, back bracket transmission.
　　This pump is pressing in type suction pump, the suction is small, suggested that the material level higher than the pump center high. Import and export pipeline diameter general and pump in and out of the same caliber or older, so most liquid concentration is higher, the pump inlet line shoulds not be too
